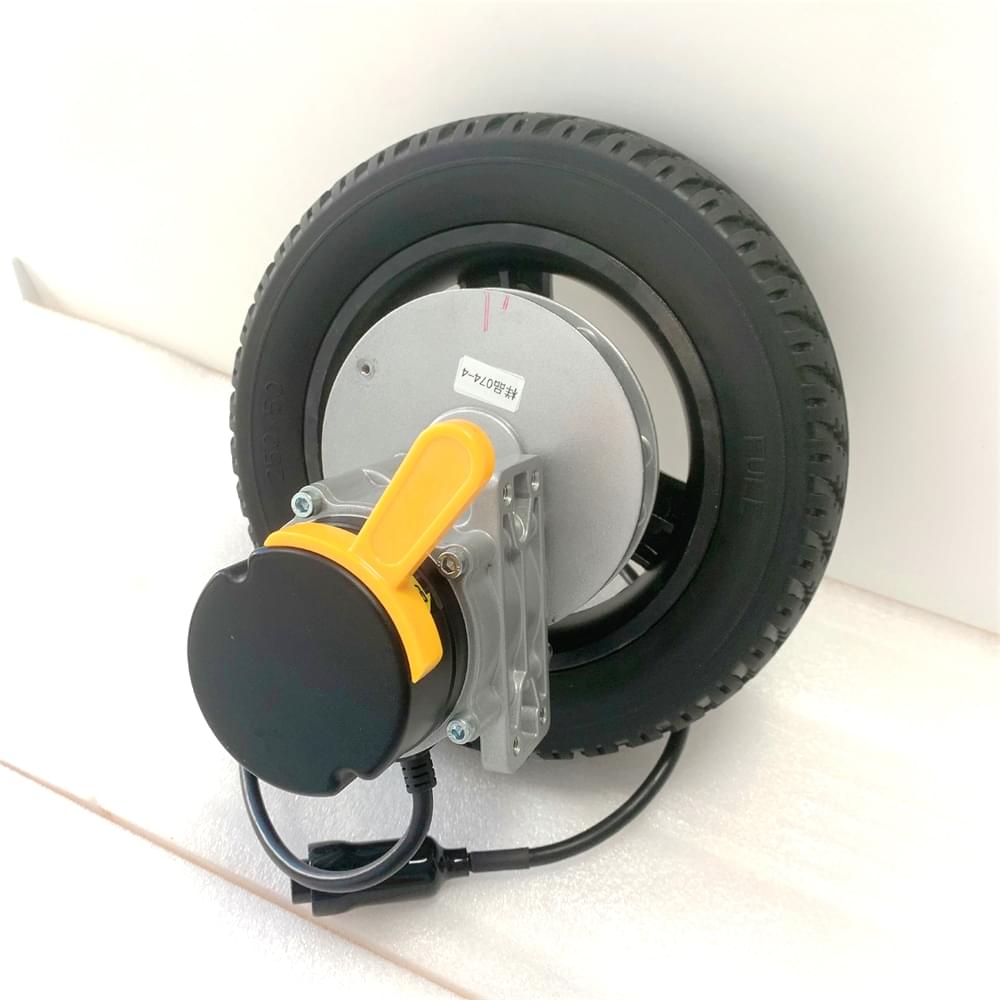

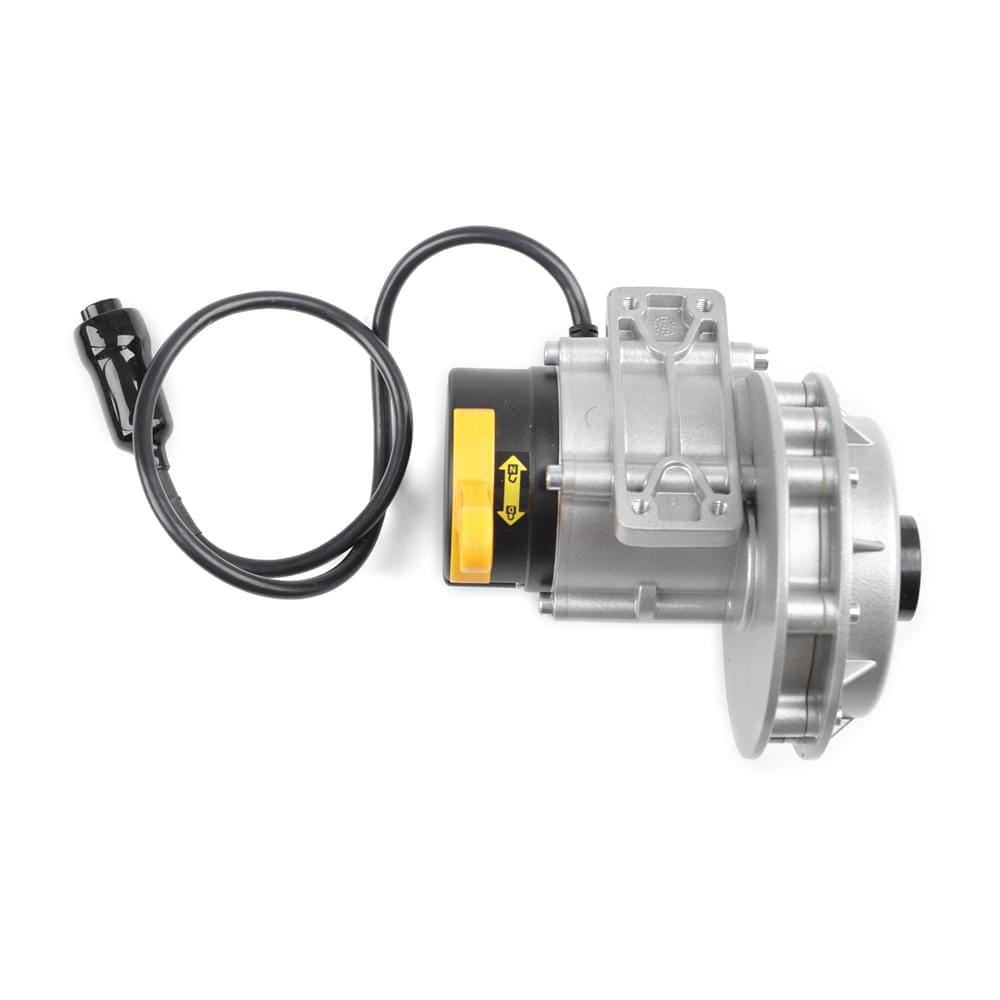

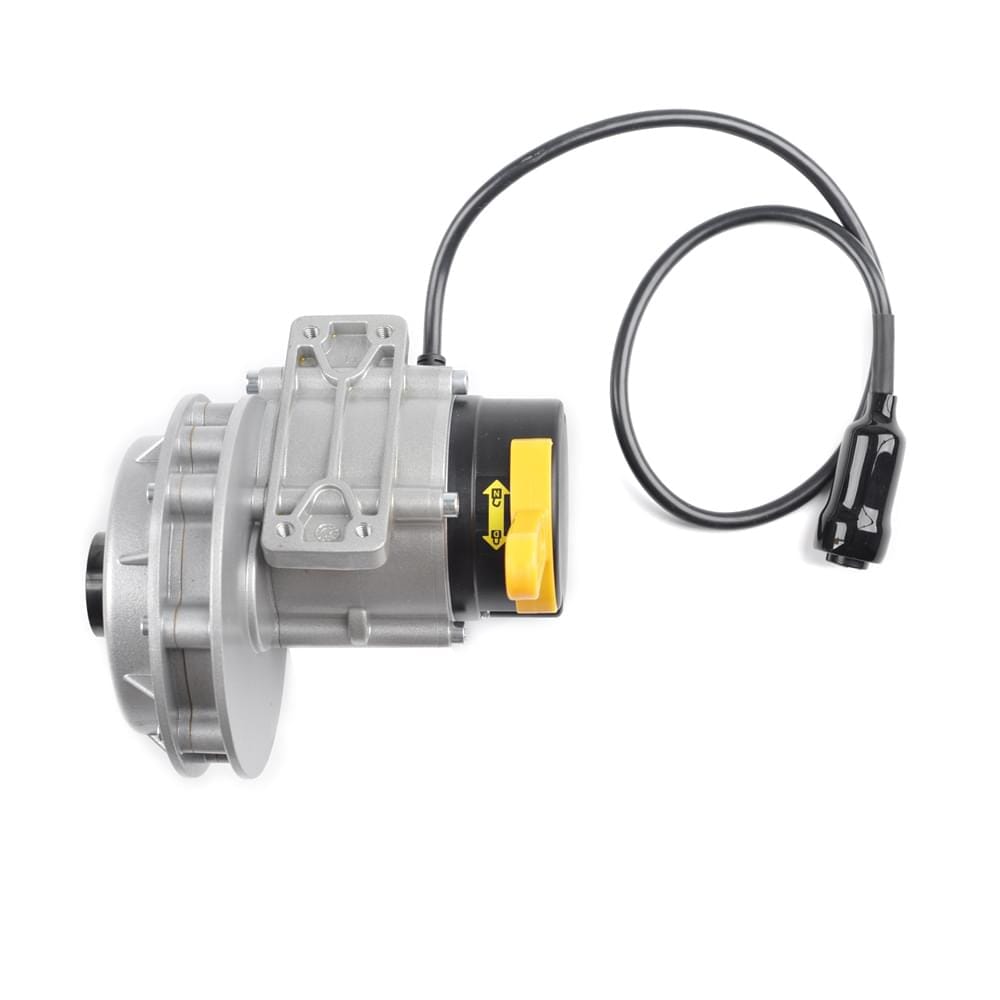

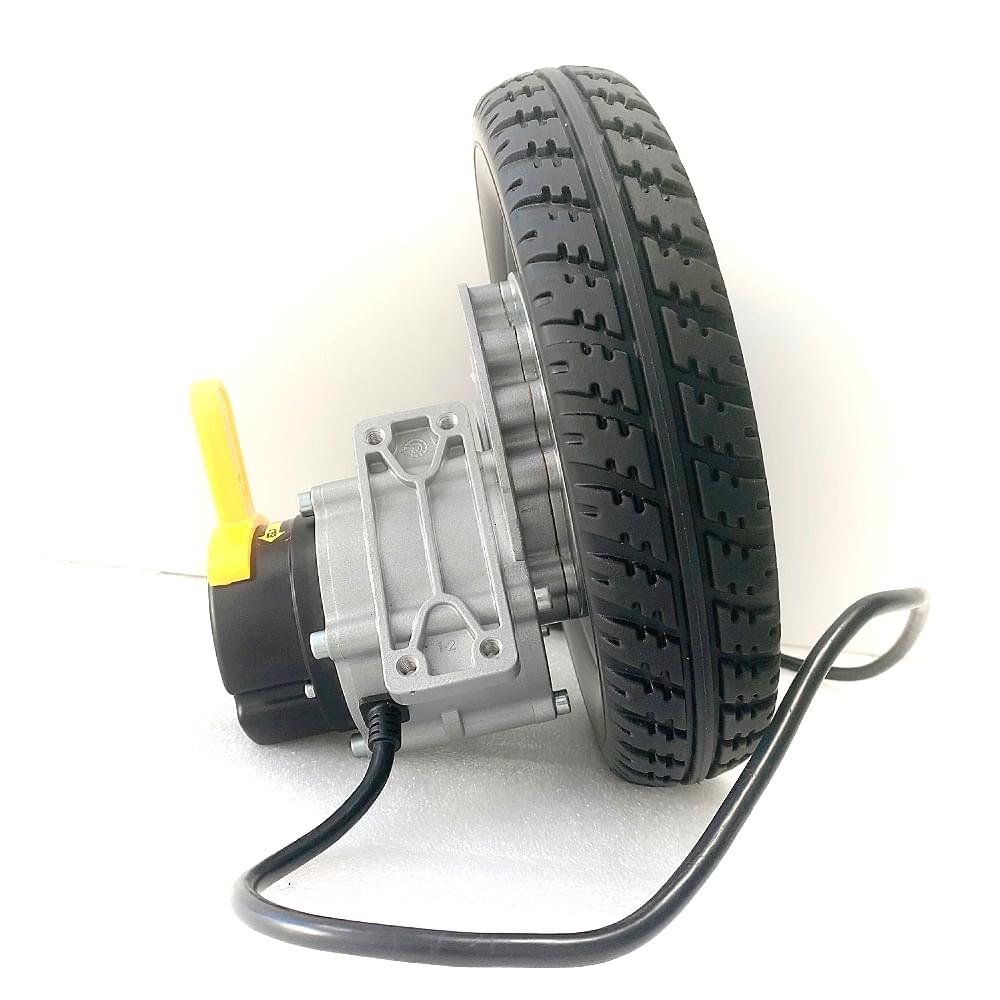

Product Overview – Brushless DC Motor for Electric Wheelchair 24V 220W
The Brushless DC motor for electric wheelchair 24V 220W offers high torque and reliable performance. With 20N.m torque, it ensures smooth, stable movement on various terrains. As a leading brushless motor manufacturer for electric wheelchairs, we provide motors that are perfect for electric wheelchairs, electric bicycles, and home appliances.
Its waterproof design and brushless commutation guarantee durability and low maintenance. Whether for everyday use or heavy-duty applications, this motor is built to last and perform efficiently.
Product Specifications for Brushless DC Motor for Wheelchair
| Attribute | Details |
|---|---|
| Rated Voltage | DC 24V |
| Rated Power | 220W |
| Torque | 20N.m |
| Motor Type | Brushless DC Motor (Permanent Magnet Type) |
| Commutation | Brushless |
| Gearbox Reduction Ratio | 15.75 |
| Electromagnetic Brake | 24V/3Nm |
| No-load Current | 0.7A |
| Protection Feature | Waterproof |
| Warranty Period | 5 Years |
Key Features of Our Brushless DC Motor for Electric Wheelchairs
- High Torque for Smooth Operation
⚡ 20N.m torque for reliable performance on both urban roads and off-road terrain. Ideal for 220W power output, supporting heavy-duty use like electric bicycles and power wheelchairs. - Waterproof and Durable Design
🌧️ Waterproof structure for use in all weather conditions. Permanent magnet and brushless commutation reduce maintenance and enhance longevity. - Low Noise for Quiet Ride
🔇 Operates at less than 52dB, providing a quiet, comfortable experience. Uses sinusoidal vector control with linear Hall sensors for precise control, especially at low speeds. - Customizable for Different Models
⚙️ Fits 8″, 10″, and 12″ wheels. Perfect for upgrading or creating new wheelchair models with optimal performance. - Electromagnetic Brake for Enhanced Safety
🚨 Equipped with a 24V/3Nm electromagnetic brake, offering smooth and controlled stopping power, improving safety during use on slopes or in emergencies.
Assembly Specifications for 8″, 10″, and 12″ Wheelchair Wheels
| Attribute | 8-inch Wheel | 10-inch Wheel | 12-inch Wheel |
|---|---|---|---|
| Maximum Speed | 8 km/h | 8 km/h | 8 km/h |
| Level Road Braking Distance | ≤ 1.5m | ≤ 1.5m | ≤ 1.5m |
| Maximum Safety Slope Braking Distance | ≤ 3.6m | ≤ 3.6m | ≤ 3.6m |
| Parking Performance | ≥ 10° | ≥ 10° | ≥ 10° |
| Climbing Ability | ≥ 10° | ≥ 10° | ≥ 10° |
| Noise | ≤ 52dB | ≤ 52dB | ≤ 52dB |
| Theoretical Range (10Ah Battery) | ≥ 16 km | ≥ 18 km | ≥ 20 km |
| Load Capacity | ≤ 150 kg | ≤ 150 kg | ≤ 150 kg |
Why Choose Our Brushless DC Motor for Electric Wheelchairs?
- Low Maintenance
🔧 No brushes to wear out, reducing maintenance needs. - High Efficiency
⚡ Over 96% energy efficiency for long-lasting performance in tough conditions. - User-Friendly Design
🚦 Includes electromagnetic brake and geared reduction for smooth acceleration and braking. - Excellent Climbing Ability
⛰️ Climbing angle ≥ 10°, ideal for navigating ramps and inclines.
