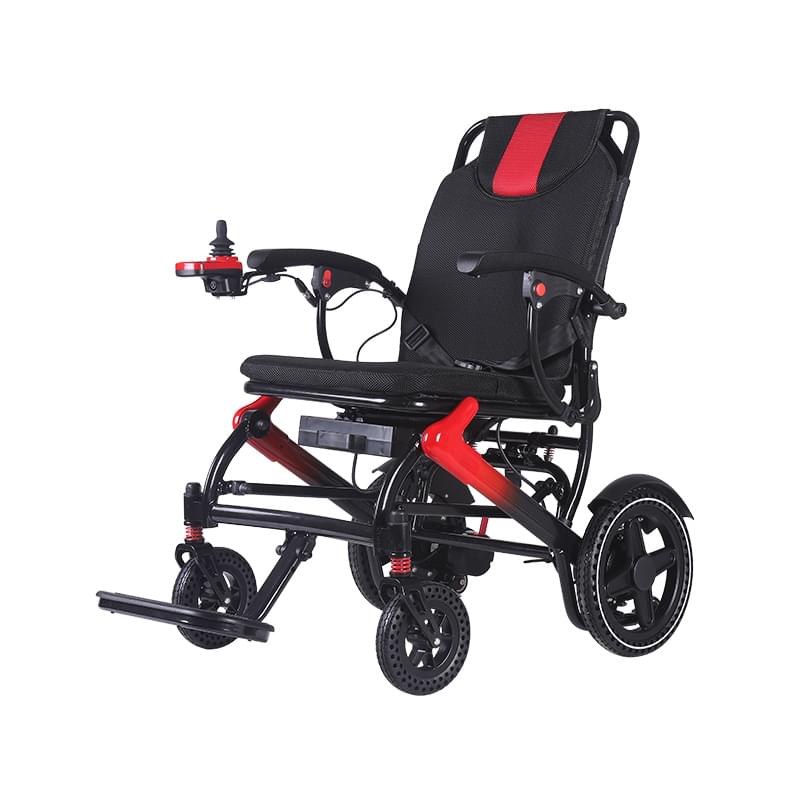

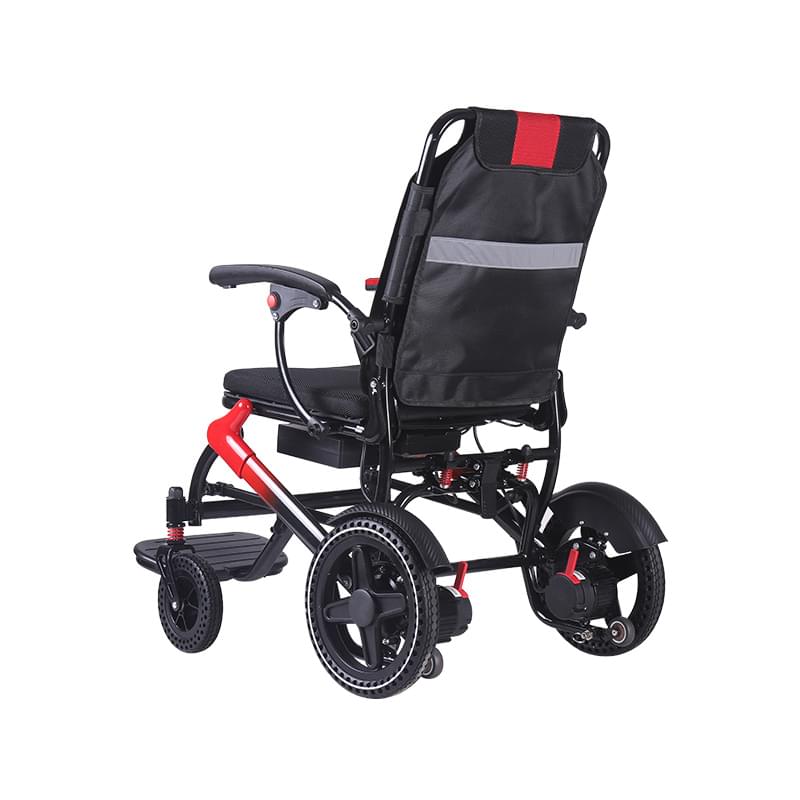

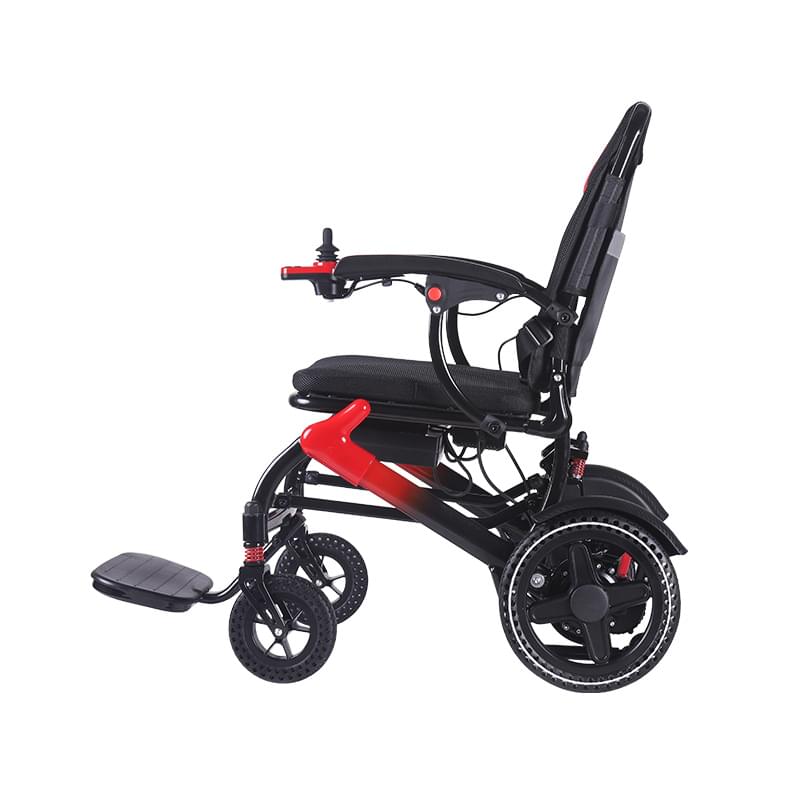

Product Overview – Electric Wheelchair With Aluminum Alloy Frame
As a custom aluminum electric wheelchair manufacturer, we take pride in engineering high-performance mobility solutions. Our product features an electric wheelchair with an aluminum alloy frame, ensuring a lightweight, durable design with unparalleled mobility. Equipped with a 10Ah lithium battery, it offers up to 12 miles of travel on a single charge, making it ideal for various applications.
🚀 High-Quality Motor:
Dual brushless motors deliver efficient performance with precise control, low noise, and an extended lifespan.
🛡️ Enhanced Safety & Comfort:
Six shock absorbers, high-quality honeycomb rubber solid tires (offering excellent elasticity and wear resistance), and a dual braking system ensure safety and comfort on every journey.
Lightweight Foldable Aluminum Electric Wheelchair – Features & Advantages
✅ Portability & Easy Folding:
Our lightweight, foldable aluminum electric wheelchair weighs 36–40.1 lbs (≈18.2 kg) and features a one-touch fold mechanism. It fits easily into a car trunk for both home and on-the-go use.
💪 Durability & Stability:
Made from high-grade aerospace aluminum alloy, this wheelchair combines lightness with strength, ensuring long-lasting performance.
🕹️ Smart Driving Experience:
Enjoy intuitive control with a 360° joystick. It includes an integrated power switch, horn, speed adjustment, and clear battery and speed indicators.
🛡️ Superior Safety Features:
The dual braking system, automatic electromagnetic brake for stationary use, and additional seat belt protection keep you safe on every ride.
Detailed Product Specifications & Technical Data
To assist global buyers—including hospitals, pharmacies, medical device distributors, and government tender projects—in making an informed decision, our product is provided with the following detailed specifications:
| Specification | Details |
|---|---|
| Frame | Aerospace-grade aluminum alloy |
| Motor | Dual 180W×2 brushless motors (or 24V 200W×2 option available) – powerful, low noise, high efficiency |
| Controller | 360° directional joystick featuring integrated power switch, horn, and speed adjustment functionality |
| Battery | 10Ah/12.5Ah lithium battery (removable option available) with a range of 11–12 miles per charge |
| Charger | 24V 2A charger; charging time ranges between 3 to 6.5 hours |
| Tires | High-quality honeycomb rubber solid tires (11-inch rear, 7-inch front) – maintenance-free, high durability |
| Brake System | Dual braking system (mechanical hand brake and electronic/electromagnetic brake) with auto-hold feature |
| Seat Dimensions | 430mm (W) x 430mm (D) x 40mm (T) – designed for optimal comfort |
| Product Dimensions | 950mm (L) x 590mm (W) x 1020mm (H) |
| Packing Dimensions | 600mm (L) x 360mm (W) x 790mm (H) |
| Net Weight (without Battery) | 19.5kg |
| Battery Weight | 2.2kg |
| Gross Weight | 26kg |
| Weight Capacity | Up to 100kg/220 lbs |
| Maneuverability | Minimum turning radius of 870mm; forward speed up to 6 km/h, reverse speed up to 2 km/h |
