Product Overview

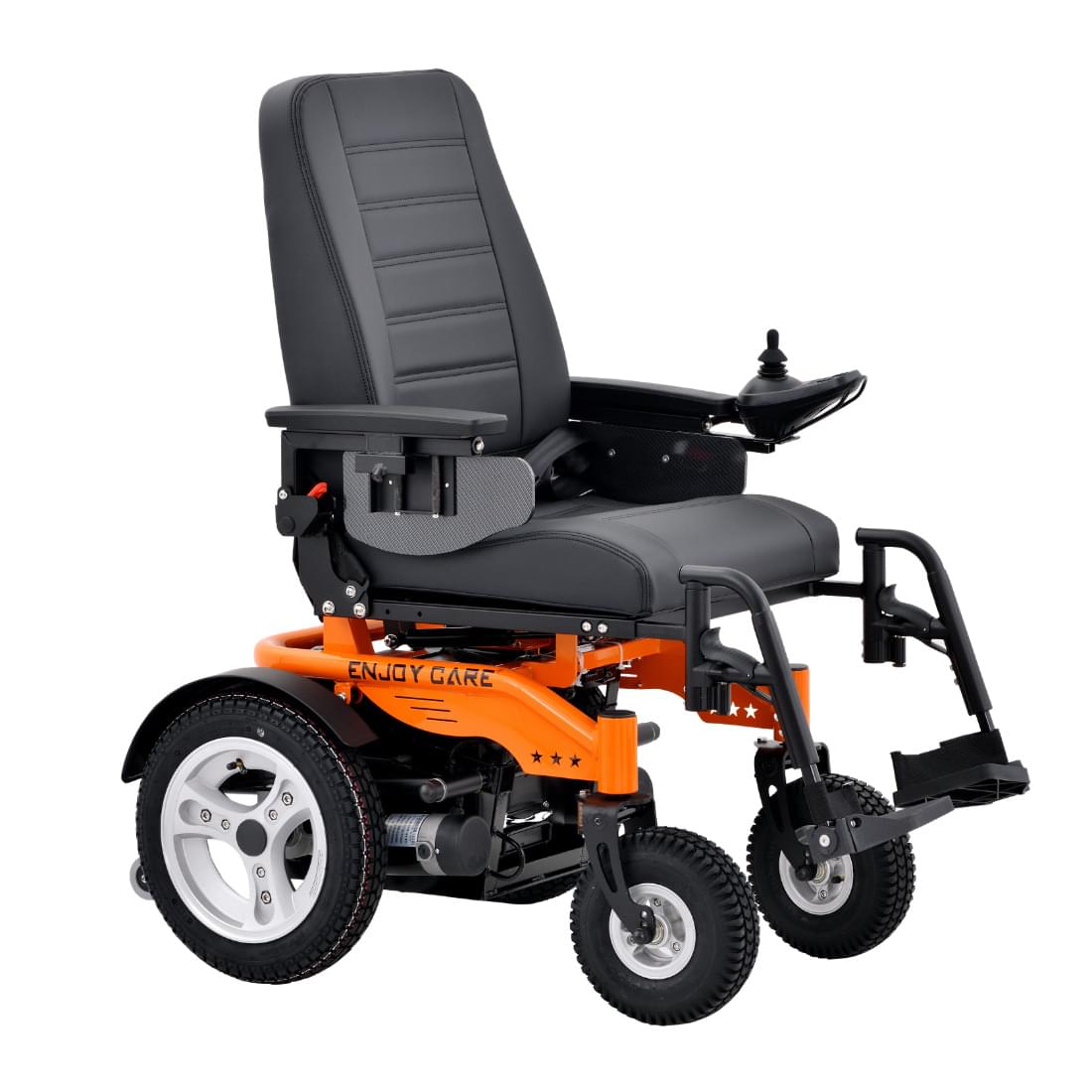

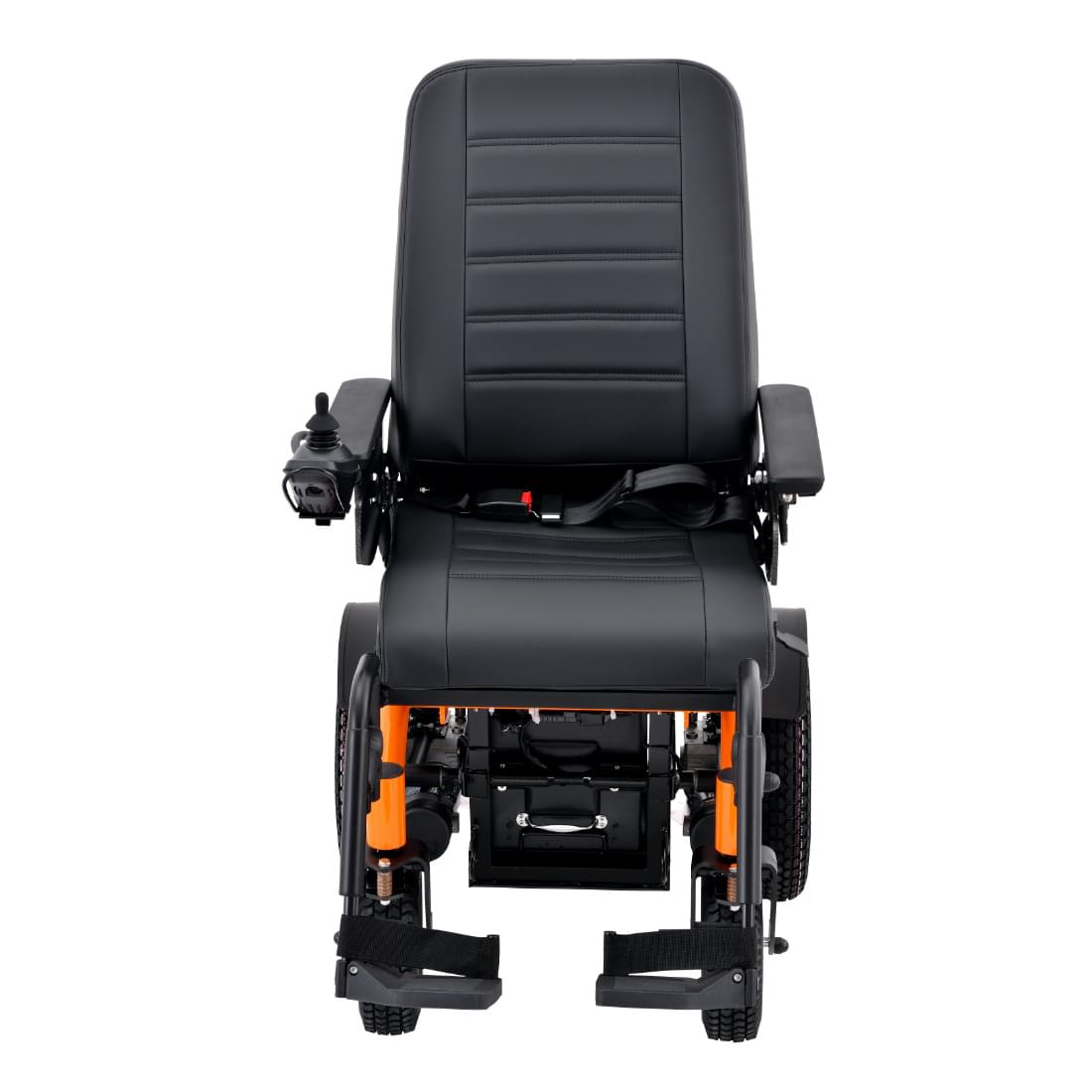

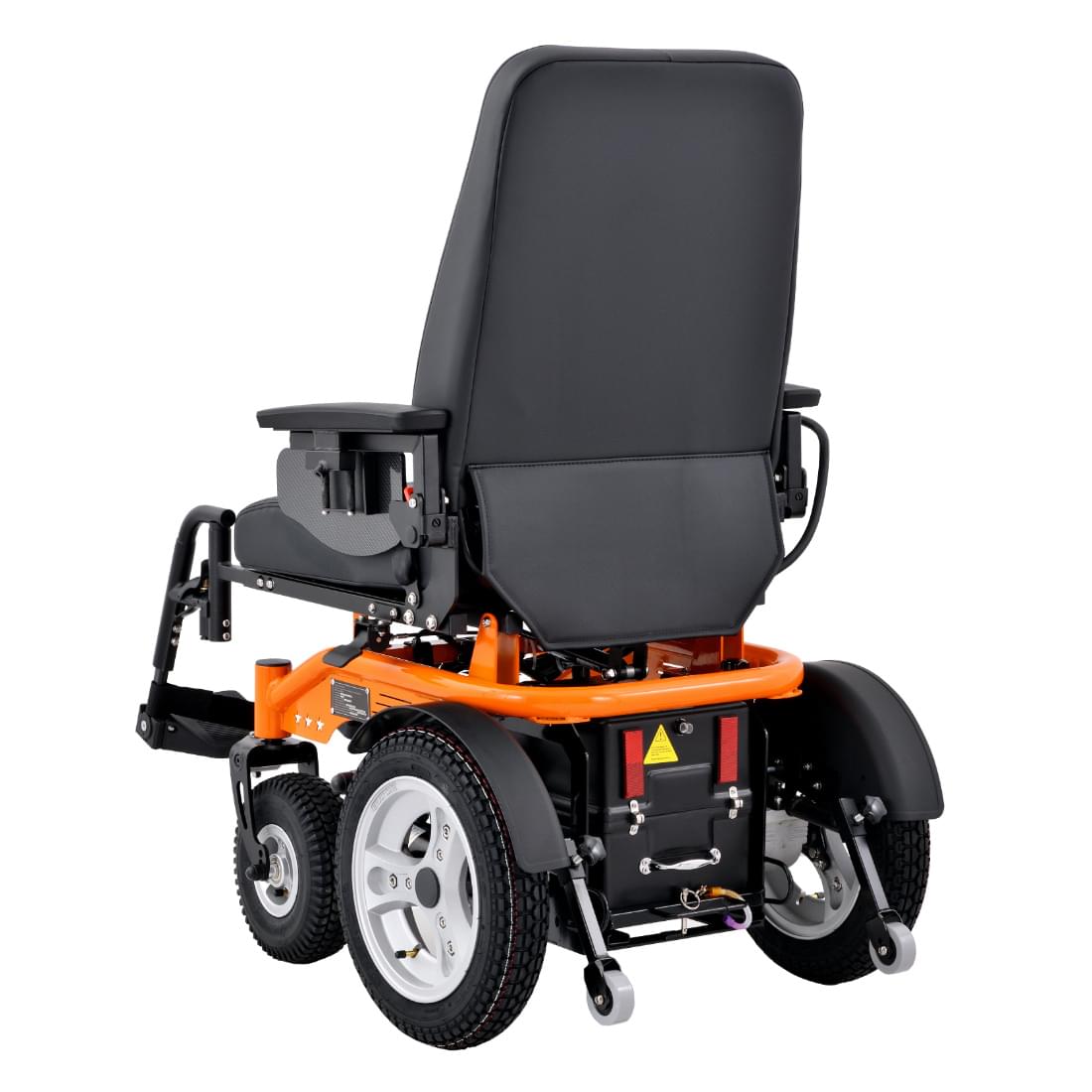

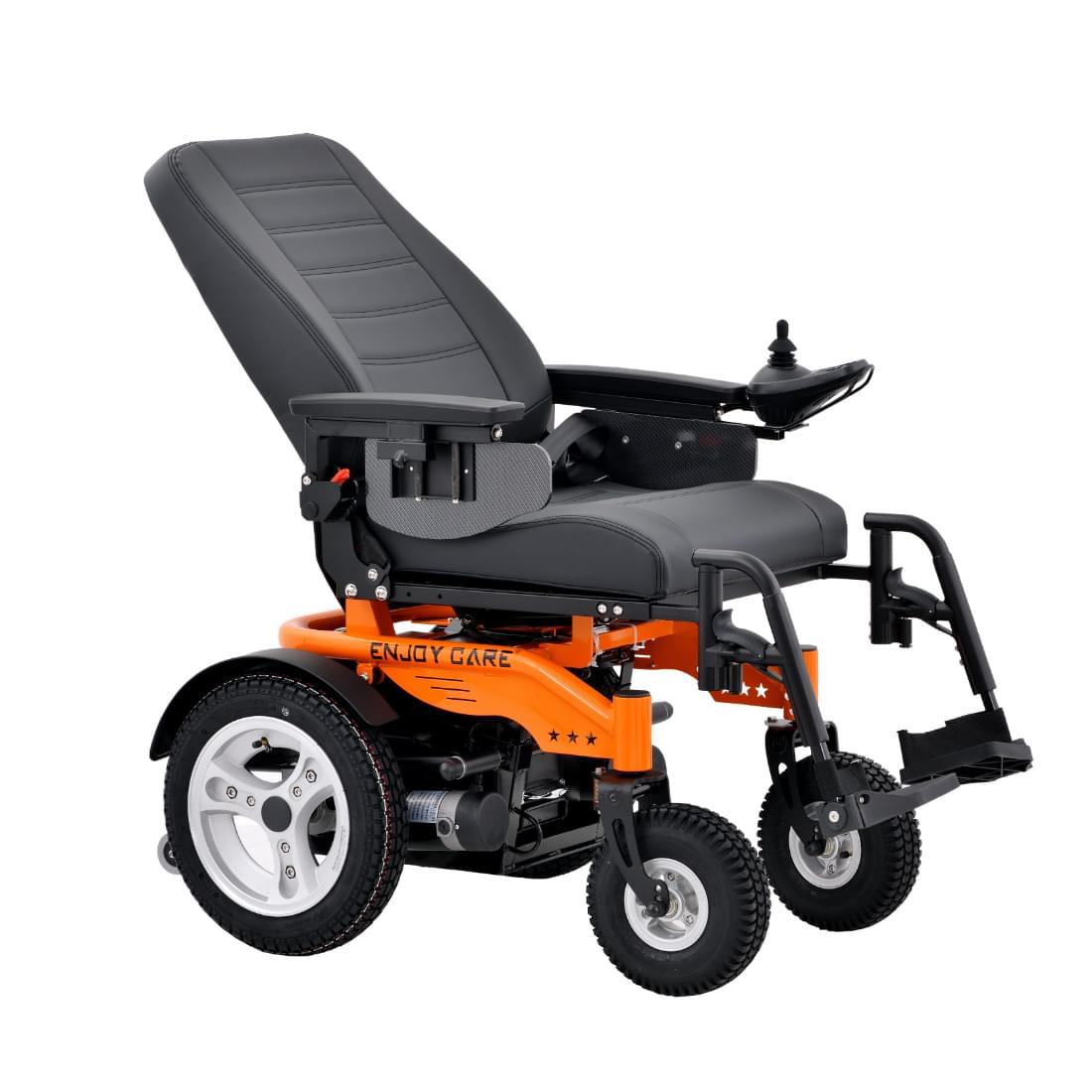

Crafted with precision and built for performance, this heavy-duty electric wheelchair exemplifies the expertise of a top heavy duty electric wheelchair factory. Engineered by an OEM heavy-duty wheelchair manufacturer, it is designed to meet global standards and tailored customer requirements, delivering unmatched durability and user comfort.
Product Specification
| Category | Details |
|---|---|
| Dimensions | – Overall: 1190mm (L) × 680mm (W) × 1220mm (H) – Seat: 500mm (W) × 480mm (D), Height 630mm – Ground Clearance: 50mm |
| Weight | – Net Weight (with batteries): 105kg – Net Weight (without batteries): 85kg – Battery Weight: 11kg × 2 (total 22kg) – Gross Weight: 115kg |
| Performance | – Max Speed: 10km/h (forward, adjustable); 3km/h (backward) – Climbing Capacity: 12° – Turning Radius: 1200mm (min) – Range: 25±5km (based on 35AH×2 batteries) – Weight Capacity: 150kg |
| Power System | – Motors: Dual 24V 400W brushless motors – Controller: 24V 60A programmable controller – Battery: 24V 35AH×2 (lead-acid, standard local replacement available) – Charger: 24V 4A AC, 110-240V global compatibility – Charge Time: 6-8 hours |
| Tires & Suspension | – Front Tires: 10″ 3.00-4 (solid or pneumatic, optional) – Rear Tires: 16″ 3.00-10 (solid or pneumatic, optional) – Suspension: Front & rear independent suspension for smooth indoor/outdoor operation |
| Controls & Comfort | – Joystick: Programmable, left/right hand compatible – Brake: Intelligent electromagnetic brake (auto-engages on stop) – Armrests: Height-adjustable (5-level) – Leg Rests: Rotatable & depth-adjustable (3-position) – Optional Controls: Sip-and-puff control, chin control (for advanced accessibility) |
| Frame & Durability | – Frame: High-strength steel alloy, powder-coated for corrosion resistance – Certifications: CE, ISO 13485 (optional, add based on actual compliance) |
| Packaging | – Packing Size: 950mm × 750mm × 820mm (L×W×H) – Shipping Weight: 115kg (gross) – Container Loading: 20′ FCL: 36 units; 40′ HQ: 108 units |
| Compatibility | – Battery: Standard 24V 35AH batteries (replaceable in local markets) – Charger: Worldwide voltage adaptability (110-240V) – Customization: OEM/ODM support (branding, color, features) |
| Safety Features | – Anti-tip wheels (rear, optional) – Emergency power-off switch – Low-battery indicator |
Advantages and Innovative Design
Our heavy-duty power wheelchair with an adjustable backrest, engineered by a leading heavy-duty electric wheelchair factory and OEM heavy-duty wheelchair manufacturer, offers state-of-the-art features:
- ⚙️ User-Friendly Control:
A dual-side programmable joystick ensures smooth and intuitive navigation. - 🛡️ Intelligent Safety System:
Advanced electromagnetic braking provides reliable and responsive stopping power. - 🛋️ Customizable Comfort:
Adjustable armrests and a rotating, depth-adjustable leg rest deliver personalized ergonomics. - 🔩 Robust Structure:
Dual suspension and a high-strength metal frame ensure lasting stability and durability.
